Carbohydrazide(Hydrazine) Analyzer

  • 1
    Convenient maintenance
    • Easy tube replacement & disassembly
    • No defect due to simplified structure
    • Data storage function (USB)
  • 2
    7” Color LCD Monitor
  • 3
    Display of data trend
  • 4
    Grab sample analysis
  • 5
    Automatic calibration by standard solution
  • 6
    Multichannel operation (1∼3ch)
  • 7
    Applications
    • Injection monitoring of oxygen scavenger in Power Plant Boilers

Technical Specifications

Model AZ-300 AZ-500
   Measuring Principle Colorimetric Method
   Measuring Range Carbohydrazide : 0~100 μg/L (ppb) to
                                 100~300 μg/L (ppb)
Hydrazine : 0~100 μg/L (ppb) to
                        100~500 μg/L (ppb)
   Display 0.1 μg/L (ppb)
   Accuracy ±2.0 μg/L or ±5% (reading)
   Calibration Automatic by standard solution
   Sample Pressure 1~5 bar
   Sample Temperature 5~45 ℃
   Sample Flow 200~500 ml/min
   Sample Connections Inlet 6mm / Outlet 10mm
   Reagent Consumption 80 days (Reagent A, C / 2 liter, Reagent B / 1 liter,  Standard solution A, B / 2liter) 60 days (Reagent A / 2 liter,
Standard solution A, B / 2 liter)
   Data Output 4∼20 mA 2 ea, Alarm 2 ea, RS 485 Modbus (Option)
   AUX ports DI(2), DO(2), Option (AI, AO)
   Panel Dimension (mm) 400W X 500H X 200D (Flush, Wall mounting)
   Degree of  Protection IP65( NEMA 4x) : Electronics, IP55(NEMA 4) : Wet part
   Power 100∼240 VAC (50/60 Hz)

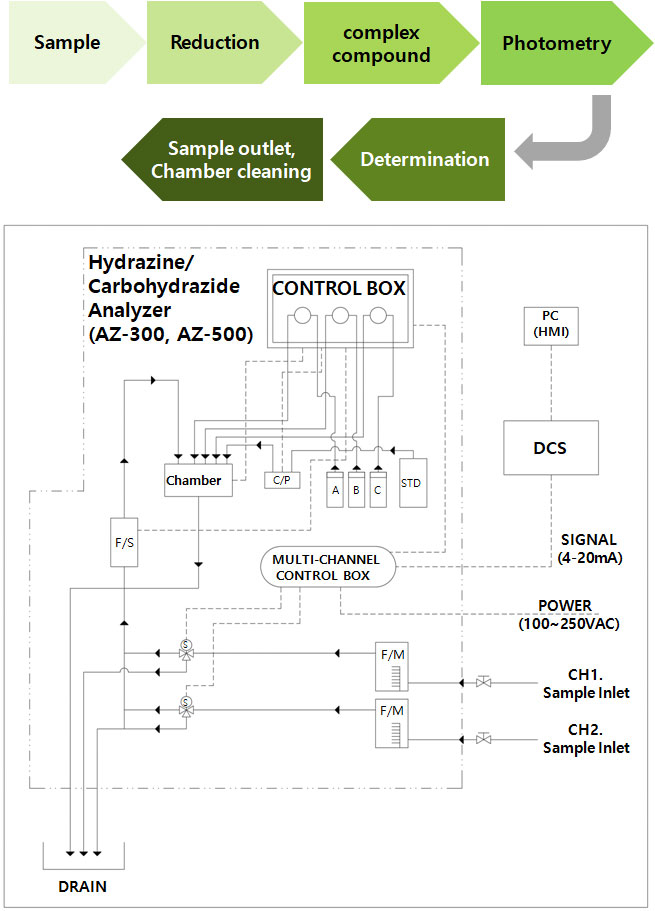

Analysis Flow


Installation

Dimensions of panel mounting

Dimensions of wall mounting


Consumable List (AZ-300, AZ-500 Model)

Part No. Description Replacement Cycle Remarks
Z500-010 Reagent pump tube  [Hydrazine] 3 months Tube set (A, B, C)
ZC500-010 Reagent pump tube  [Carbohydrazide] 3 months Tube set (A, B, C)
Z500-012 Reagent bottle fitting [Hydrazine] 1  year Fitting and tube in bottle
ZC500-012 Reagent bottle fitting [Carbohydrazide] 1  year Fitting and tube in bottle
Z500-016 Hydrazine Reagent A 2 months Color Reagent (2 liter)
ZC500-016 Carbohydrazide Reagent A 3 months Color Reagent (2 liter)
ZC500-017 Carbohydrazide Reagent B 3 months Complex Reagent (1 liter)
ZC500-018 Carbohydrazide Reagent C 3 months Cleaning Reagent (2 liter)
Z500-019 Hydrazine Standard solution A 2 months High Point (2 liter)
ZC500-019 Carbohydrzide Standard solution A 2 months High Point (2 liter)
Z500-020 Hydrazine Standard solution B 2 months Low Point (2 liter)
ZC500-020 Carbohydrzide Standard solution B 2 months Low Point (2 liter)
Z500-022 Pump (Standard solution) Failure Supply pump for standard solution or grab sample
Z500-023 Pump (Reagent) Failure Supply pump for reagent
Z500-035 Sample filter For preventing impurities inflow
