Water Quality On Line Process Analyzer
Cost Saving, Convenient Maintenance, Exellent performance, High qualiy Service

본문 영역

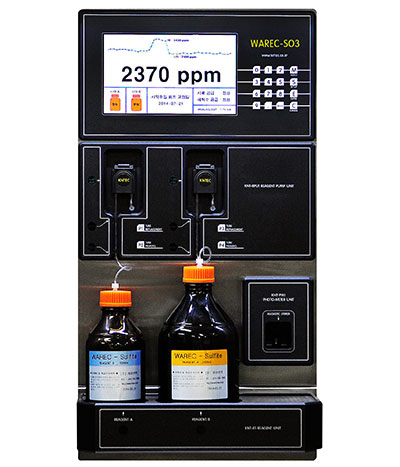

Sulfite(SO3) Analyzer

  • 1
    Easy inspection and maintenance
    • Minimize interference from turbidity
    • Checking the stirring status of samples
    • Data storage function (USB)
  • 2
    10” Color LCD Monitor
  • 3
    Display of data trend
  • 4
    Grab sample analysis
  • 5
    Automatic calibration by standard solution
  • 6
    Automatic cleaning function
  • 7
    Built-in vibration-reducing device
  • 8
    Applications
    • Process management of exhaust gas desulfurization facilities at power plants and steel mills
    • Desulfurization process management in the paper industry

Technical Specifications

Model ASP-250
   Measuring Principle Colorimetric Method
   Measuring Range  0 ~ 15 mg/L / 200 ~ 12,000 mg/L
   Display 0.1 mg/L / 1 mg/L
   Accuracy ±0.3 mg/L or ±5 % / ±10 mg/L or ±2 %
   Response Time 15 min App.
   Calibration Automatic by standard solution
   Sample Pressure 1∼5 bar
   Sample Temperature 5∼45 ℃
   Sample Flow 200∼700 ml/min
   Sample Connections Inlet 6mm/ Outlet 10mm
   Reagent Consumption 30 days (Reagent A / 1 liter, Reagent B / 1 liter, Standard solution / 2 liter)
   Data Output 4∼20 mA 2 ea, Alarm 2 ea, RS 485 Modbus (Option)
   Panel Dimension (mm) 400W X 500H X 200D (Flush, Wall mounting), (700W X 1620H X 350D (Standing type)
   Degree of  Protection IP65( NEMA 4x) : Electronics, IP55(NEMA 4) : Wet part
   Power 100∼240 VAC (50/60 Hz)


Analysis Flow


Installation

Standing type Panel



Consumable List (ASP-250 Model)

Part No. Description Replacement Cycle Remarks
SP01-010 Reagent pump tube 3 months Tube set (A, B)
SP01-011 Teflon Coating Tube (2M) 6 months For reagent injection
SP01-012 2 Way solenoid valve 2  years
SP01-013 Pump (Standard solution) Failure Supply pump for standard solution or grab sample
SP01-016 Reagent A 30 days Reagent (1 liter)
SP01-017 Reagent B 30 days Reagent (2 liter)
SP01-018 Standard Solution  60 days 500~5000 mg/L (2 liter)
SP01-020 Reagent bottle fitting 1  year Fitting and tube in bottle
SP01-021 Electro-magnetic flow meter Failure Monitor for sample flow rate
SP01-022 Pump (Reagent) Failure Supply pump for reagent
SP01-023 Multi-channel connection tube 1  year
