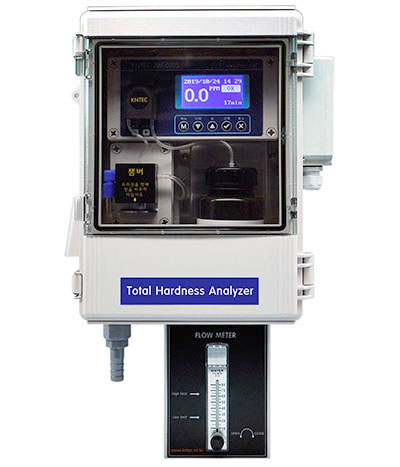

Automatic Hardness Monitor

  • 1
    Simplified structure for Easy maintenance
    • Easy tube replacement & disassembly
    • No defect due to simplified structure
    • Digital display of measurement result and state if operation
    • Alarm against shortage of sample or reagent
  • 2
    Set function for analysis start, wait, end time
  • 3
    Reagent 1ea & Low consumption
    • Available for 5 months
  • 4
    Convenient to operate
  • 5
    Large capacity of measured data storageConvenient to operate
  • 6
    Applications
    • Total hardness monitoring for the Softner or Softwater
    • Monitoring of total hardness in boiler water or cooling water

Technical Specification

Model AH-030
   Measuring Range (Usage) 0~3 mg/L (Soft water) 0~50 mg/L (Boiler water) 0~250 mg/L (Cooling water)
   Display 0.5 mg/L (ppm) 1 mg/L (ppm) 10~13 mg/L (ppm)
   Accuracy ± 0.5 mg/L (ppm) ± 1~3 mg/L (ppm) ± 10~20 mg/L (ppm)
   Response Time 1~4 min 1~12 min 1~6 min
   Alarm 1~250 mg/L (User configurable)
   Data Output LCD Display English, Number (4~20 mA Option)
   Data Storage Date and measure (300 ea)
   Reagent Consumption 500ml (1~3 months, Depends on the measured concentration)
   Sample Flow 200∼500 ml/min
   Sample Temperature 5∼40 ℃
   Panel Dimension (mm) 300W X 520H X 160D (Wall mounting)
   Degree of  Protection IP65( NEMA 4x) : Electronics, IP54(NEMA 3) : Wet part
   Power 100∼240 VAC (50/60 Hz)

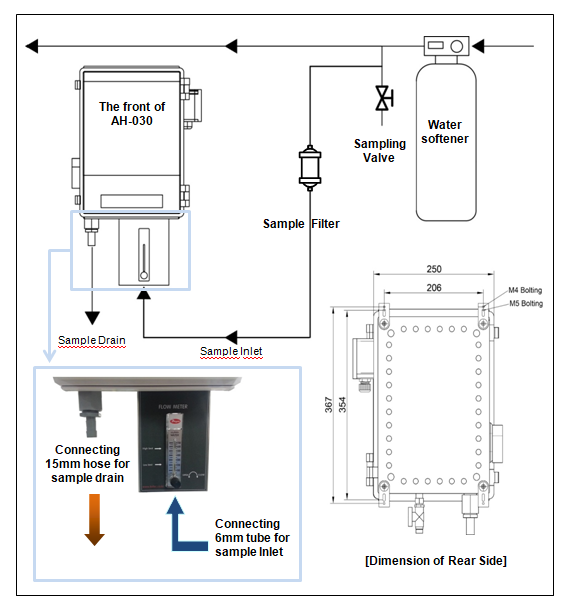

Installation (For Soft water)

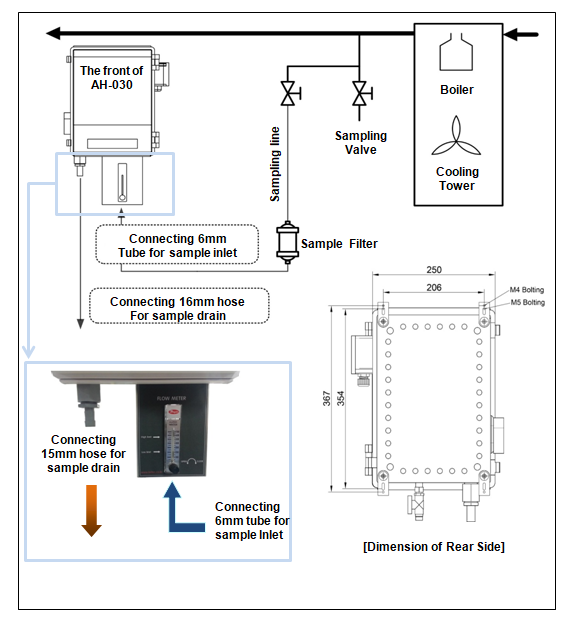

Installation (For Boiler water or Coolong water)

Consumable List (AH-030 Model)

Part No. Description Replacement Cycle Remarks
HS02-010 Reagent pump tube  3 months Tube set (A, B)
HS01-011 Fitting tube 6 months Reagent injection tube
HS02-011 Pump (Reagent) Failure Supply pump for reagent
HS02-012 Electromagnetic flow meter Failure Monitor for sample flow rate
HS02-013 Solenoid valve (2 way) Failure For multi-channel
HS02-016 Reagent (For Soft water) 3 months Reagent ( 500 ml)
HS03-016 Reagent (For Boiler water) 3 months Reagent ( 500 ml)
HS03H-016 Reagent (For Cooling water) 3 months Reagent ( 500 ml)
HS02-020 Reagent bottle fitting 1  year Fitting and tube in bottle
HS02-023 Sample filter For preventing impurities inflow
